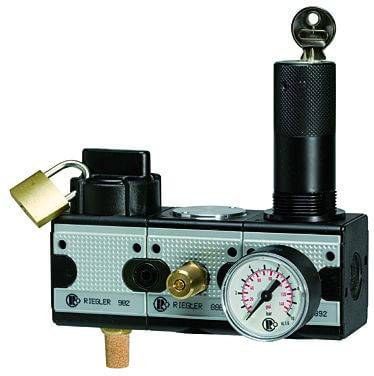

SAFETY service unit set, comprising a ball valve with silencer, start-up valve and pressure regulator with lock cylinder, Multifix series
All variants
Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
Code: WS 1002
SAFETY service unit set, comprising a ball valve with silencer, start-up valve and pressure regulator with lock cylinder, Multifix series
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
The price does not include a padlock. Please order separately.
Includes pressure gauge.
33059 €
Prices are without VAT
on demand
General specifications
See moreSee less
| Input pressure | 2 - 16 bar |
| Pressure gauge | 0 - 16 bar |
| Temperature | max. 60 °C |
| Medium | aer comprimat |
| Body | Die-cast zinc |
| Spring bonnet | POM |
| Filter element | Cellpor (PE) |
| Filter rating | 5 μm |
| Sealant | NBR |
| Diaphragms | NBR |
| Vent port | Silencer (ball valve) |
| Flow rate measurement | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
Parameters
| Thread | G 1/2" |
| Control range [bar] | 2,0 - 10,0 |
| Flow rate [l/min] | 4000,0 |
| Size | 3 |
| A [mm] | 189,0 |
| B [mm] | 200,8 |
| C [mm] | 122,0 |
