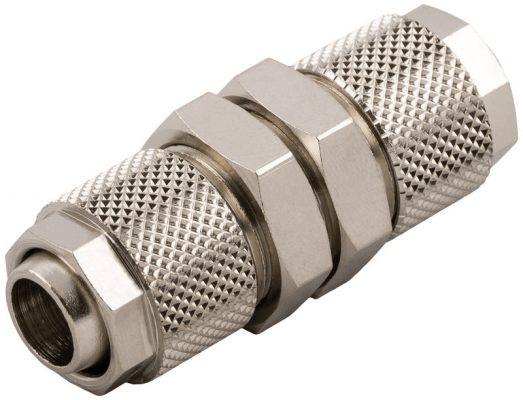

Bulkhead push-on 8/6 mm connector, equal, nickel-plated brass
All variants
Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
LDS
Code: 159M-8/6
426 €
Prices are without VAT
in stock
General specifications
| Applications | compressed air, vacuum, inert gases, cooling, printing |
| Pressure | max. 18 bar |
| Working temperature | depend on which type of tube is used |
| Materials | body: nickel-plated brass |
Parameters
| Tube Ø ext / Ø int [mm] | 8/6 - 8/6 |
| A | M12 x 1 |
| L [mm] | 48,4 |
| CH [mm] | 17 |
