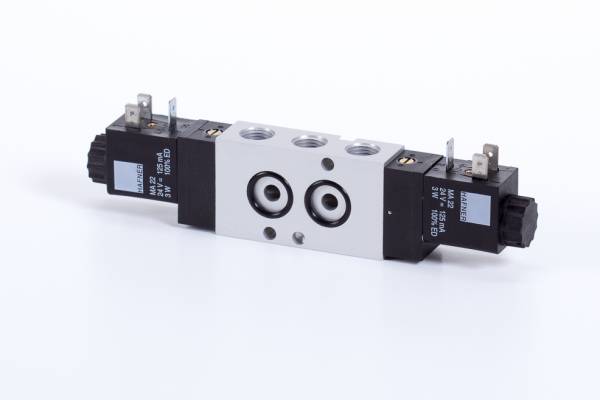

NAMUR 3/2 electric, bistable way-valve, G 1/4, NAMUR 1/4
All variants
Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
LDS
Code: MNH 520 701
It doesn't include the solenoid
5/2-way solenoid valve actuated by impulse. Position is kept until next electrical signal even when not attached to electrical source. Interface according to NAMUR-standard.
MNH - generally with manual override to turn with solenoid operators: 230V/50Hz, 110V/50Hz, 24V/50Hz, 48V=, 24V=, 12V=.
MNK - with manual override to push with solenoid operators: 230V/50Hz, 110V/50Hz, 24V/50Hz, 24V=, 12V=, 6V=.
Delivery includes 1 pin, 2 screws and 2 O-ring.
CHOOSE THE SOLENOID PLEASE CHECK THE ACCESSORIES MENU.
7446 €
Prices are without VAT
in stock
Parameters
| NAMUR | 1/4 |
| Connections | G 1/4" |
| Flow rate (air) [l/min] | 1250,0 |
| Operating pressure [bar] | 2,0 - 10,0 |
| Power consumption | 3 W = / 5 VA ~ |
| Weight [Kg] | 0,35 |
