2/2 solenoid valve, NC, directly operated, 24 V DC, FPM, G 1/4", 0 - 16 bar
All variants

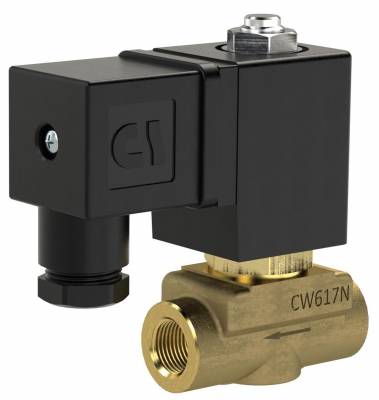

Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
Code: EV22NCDF-24VD-G14-16
10730 €
Prices are without VAT
on demand
General specifications
| Type | Direct operated |
| Ambient temperature | -20°C ÷ +55°C |
| Protection IP | IP 65 |
| Material | Housing: Brass, Seat: Brass, Internal parts: Stainless steel |
| Applications | For plant engineering, process technology, filling technology, providing an optimul solution for control and regulation of fluids |
Parameters
| Voltages | 24 V DC |
| Thread | G 1/4" |
| Working pressure [bar] | 0 - 16 |
| Medium temp. min/max [°C] | -15/100 |
| Function | Normally closed (NC) |
| Sealant | FPM |
| DN [mm] | 3 |
| A [mm] | 50 |
| B [mm] | 80 |
| C [mm] | 29,5 |
