Service unit, 2-piece, polycarbonate bowl and PA sight dome, Heavy Duty series
All variants

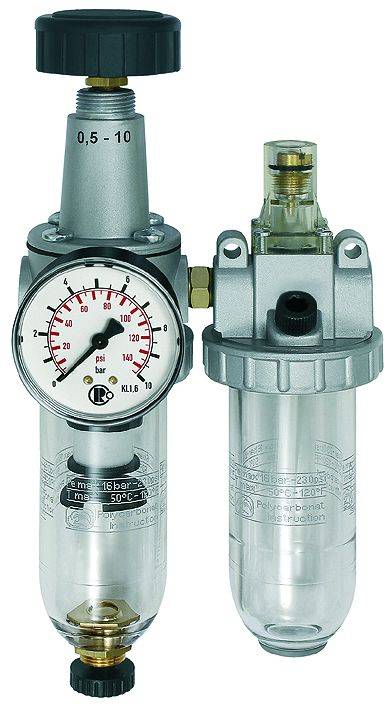

Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
Code: SRLF-01 D
Service unit, 2-piece, polycarbonate bowl and PA sight dome, Heavy Duty series
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
18731 €
Prices are without VAT
on demand
General specifications
| Input pressure | max. 16 bar |
| Medium temperature | max. 60°C |
| Ambient temperature | max. 60°C |
| Medium | aer comprimat |
| Drain | Semi-automatic |
| Body | Die-cast zinc / aluminium, painted silver |
| Sealant | NBR |
| Flow rate measurement | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
Parameters
| Thread | G 1/2" |
| Control range [bar] | 0,5 - 10 |
| Flow rate [l/min] | 2100,0 |
| Filter rating [μm] | 5,0 |
| Pressure gauge display [bar] | 0 - 16 |
| Size | 3 |
| A [mm] | 175,0 |
| B [mm] | 299,4 |
| C [mm] | 130,0 |
