Service unit, 3-piece with polycarbonate bowl and PA sight dome, Multifix series
All variants

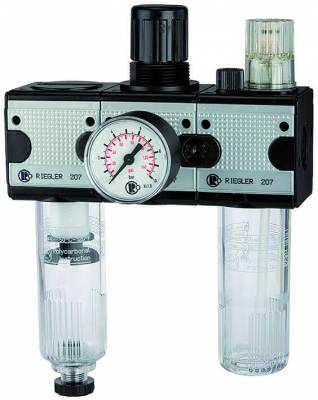

Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
Code: FRL 33 K-HA
Service unit, 3-piece with polycarbonate bowl and PA sight dome, Multifix series
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Pressure gauge included.
Also available with the following control ranges: 0,1 - 3 bar, 0,2 - 6 bar, 0,5 - 16 bar.
20330 €
Prices are without VAT
on demand
General specifications
| Input pressure | 16 bar max. |
| Pressure gauge | 0 - 16 bar |
| Medium temperature | max. 60°C |
| Ambient temperature | max. 60°C |
| Medium | aer comprimat |
| Drain | Semi-automatic |
| Spring bonnet | POM-Brass |
| Sealant | NBR |
| Flow rate measurement | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
Parameters
| Thread | G 1/2" |
| Control range [bar] | 0,5 - 10 |
| Flow rate [l/min] | 3000,0 |
| Housing | Die-cast zinc |
| Filter rating [μm] | 5,0 |
| Size | 3 |
| A [mm] | 200,8 |
| B [mm] | 246,3 |
| D [mm] | 147,3 |
