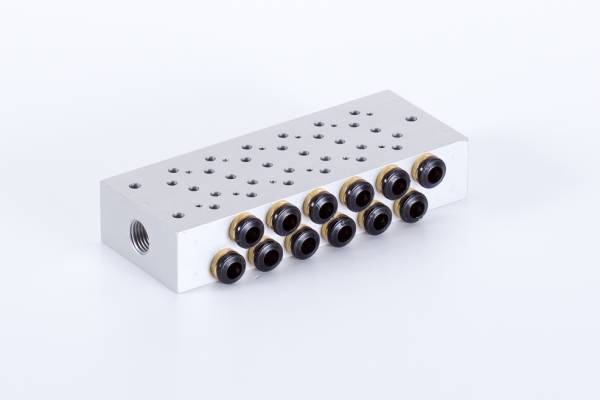

Manifold plate for 5/2 and 5/3 valves, RD-5XX-344 / RD-5XX-464 type

Common connection to port 1 (pressure), 3 and 5 (exhaust). The individual ports 2 and 4 are also in the manifold plate equipped with push-in fittings.

The following valves can be assembled to the manifold plate type RD 5_ _ 464 (push-in 6 mm): MD 510 404, MD 520 404 si MD 53_ 404.

Blanking plates are also available type BP 5 404.

Please note: Due to the compact design of the plate if a larger number of valves are to switch at the same time please do not select plates with more than 6 stations.
