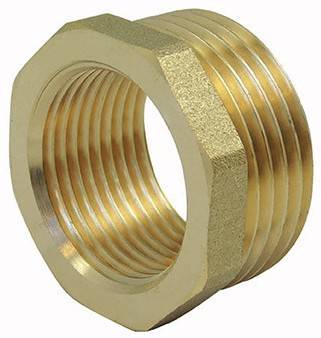

Reducing nipple with thread male G 1" - female G 3/4", PN 16, brass
All variants
Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
LDS
Code: 253ALP-1-3/4
The maximum operating temperature of 150°C refers to the use of the fittings without a gasket.
Due to their special design, these fittings allow the use of sealing gaskets:
- Flat gasket made of vulcanised red fiber: used for potable water and oil, operating temperature -15°C ÷ +70°C
- Flat gasket made of EPDM: used for potable water and chlorinated water, operating temperature -20°C ÷ +110°C
- Flat gasket made of NBR: used for water, compressed air, oil, hydrocarbons, operating temperature -15°C ÷ +80°C
273 €
Prices are without VAT
in stock
General specifications
| Applications | compressed air, vacuum, water and other industrial applications |
Parameters
| Material | brass |
| Male thread | G 1" |
| Female thread | G 3/4" |
| PN [bar] | 16 |
| Operating temperature [°C] | max. 150 |
