Precision pressure regulator with pressure gauge, G 3/8", 0,1 - 2 bar, 2750 l/min, Future series
All variants

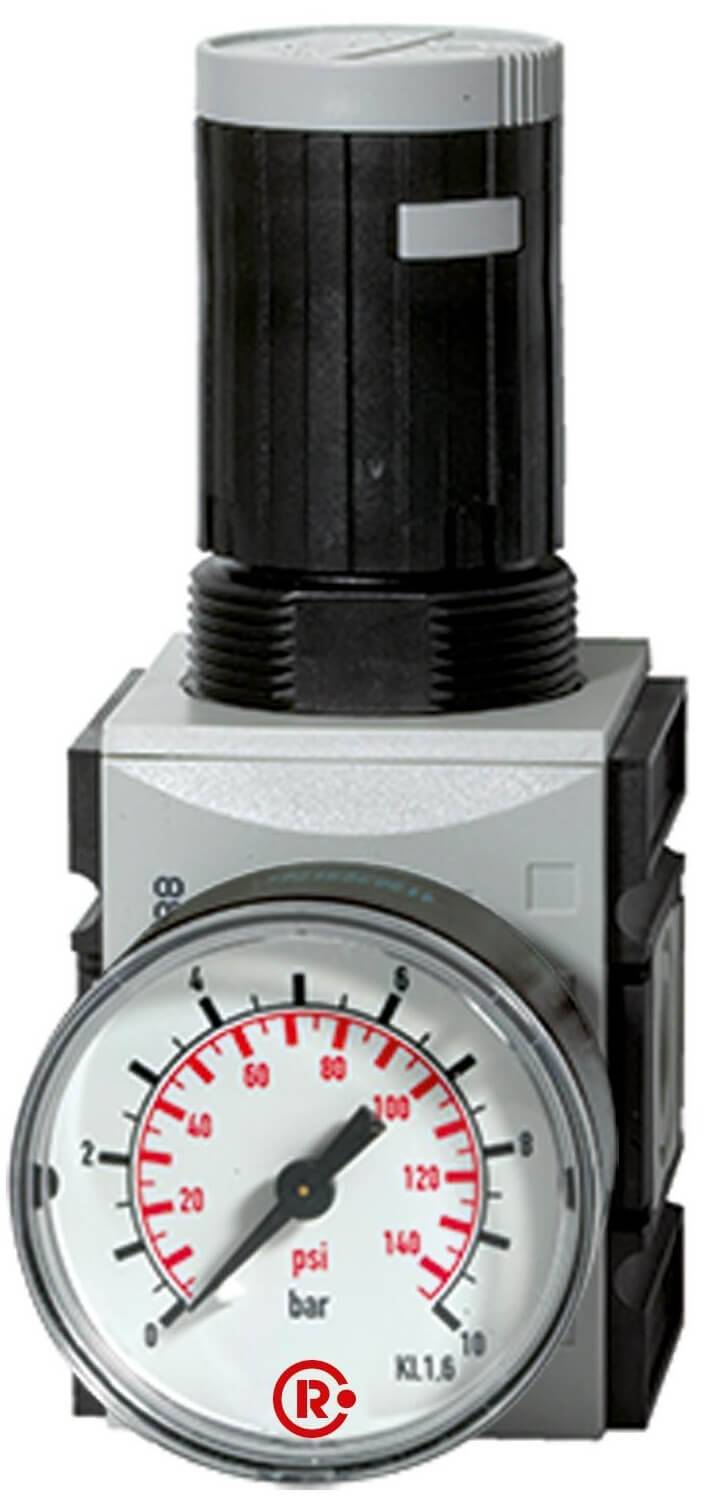

Illustrative image
The images that are presented on the site are informative, the products actually delivered may differ from them in terms of color, appearance, shape, inscription, etc.
Code: RF 1502
Precision pressure regulator with pressure gauge, Future series
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for applications requiring an extremely accurate working pressure.
The regulator button can be latched and locked.
This controller is only allowed to be operated with micro-filtered air (filter rating 0,01 μm)
6660 €
Prices are without VAT
on demand
General specifications
| Input pressure | 16 bar max. |
| Temperature range | -10°C ÷ +50°C |
| Medium | Compressed air, neutral gases |
| Body | PA66 GF60 |
| Connecting thread | Die-cast zinc |
| Sealant | NBR |
| Diaphragms | NBR |
| Internal air consumption | max. 2,6 l/min (depending on secondary pressure) |
| Flow rate measurement | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
Parameters
| Thread | G 3/8" |
| Control range [bar] | 0,1 - 2 |
| Flow rate [l/min] | 2750 |
| Pressure gauge display [bar] | 0 - 2,5 |
| Size | 1 |
| A [mm] | 52 |
| B [mm] | 129 |
| C [mm] | 96 |
